HARVEY CEMENT PRODUCTS

Since 1947 - High Quality Cast Stone and Concrete Masonry Units

Turlington Structural Brick

 Turlington Structural Brick eBinder

Classic, Beautiful, Cost-effective

Turlington Brick is a cement-brick alternative to clay masonry units.

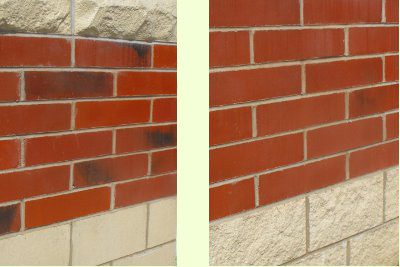

A blend of three colors achieves a clay brick look. Available with or without a dark flash.

Value Engineering with Turlington Brick

Because of it's through-wall design, Turlington Brick creates a finished interior and exterior wall, with the simplicity of a single-wythe wall.

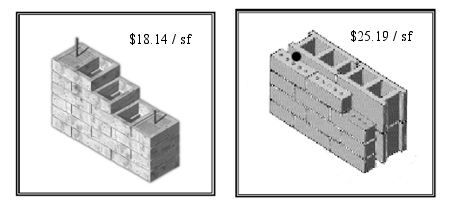

            12" unit (4" x 16" face)                4" Utility Brick with 8" CMU

This represents a cost savings of $7.05 per sq.ft.

ASTM C90 Specifications for Load-bearing Concrete Masonry Units

PROPERTY
TEST
TARGET VALUE
TURLINGTON BRICK
Compressive Strength
ASTM C140
More than 1900 PSI
2970 PSI
Absorption
ASTM C140
Less than 15 lbs./cu.ft.
7.34 lbs./cu.ft.
Density
ASTM C140
105-125 lbs./cu.ft.
126.26
Linear Shrinkage
ASTM C140
Less than 0.065%
0.05%

Subject to linear shrinkage, these tests show compliance with ASTM C-90-02, "Specification for Loadbearing Concrete Masonry Units".
